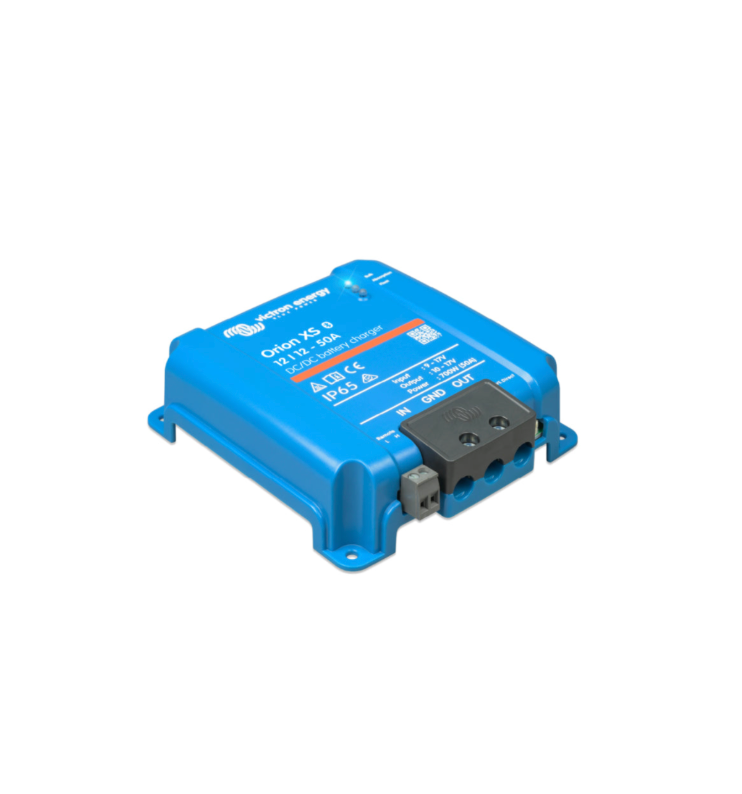

| Orion XS 12/12-50A DC-DC Battery Charger |
|
|
Input Voltage Range |
9-17V |
|
Output Voltage Adjust Range |
10-17V |
|
Output Voltage Tolerance |
+/- 0.25% (max) |
|
Output Voltage Noise |
10mV rms |
| Input & Output Current Setting Range |
1 - 50A |
|
Maximum Constant Short-Circuit Current |
50A |
|
Continuous Output Power up to 40°C |
700W |
|
Maximum Efficiency |
98.5% |
|
No-load Current Consumption |
< 100 mA |
|
Standby Current Consumption |
< 1.5 mA |
|
Can be Used as a Power Supply |
Yes, output voltage can be set with VictronConnect App |
|
Communication Ports |
|
|
Bluetooth Smart |
Yes |
|
VE.Direct |
Yes |
|
Other |
|
|
Operating Temperature Range |
-20C to +60C (derating 1.5% per C above 40C) |
|
Humidity |
Max. 95% (Non-Condensing) |
|
DC Connection |
Screw Terminals |
|
Maximum Cable Cross Section |
25mm (AWG 4) |
|
Weight |
0.33kg |
|
Dimensions |
137.3 x 123.1 x 40mm |
|
Protection Category |
IP65 |
|
Standards |
|
|
Safety |
IEC 62477-1 |
|
Emission |
IEC 61000-6-3, EN 55014-2 |
|
Immunity |
IEC 61000-6-2, IEC 61000-6-1, EN 55014-2 |
|
Automotive Directive |
ECE R10-5 |
